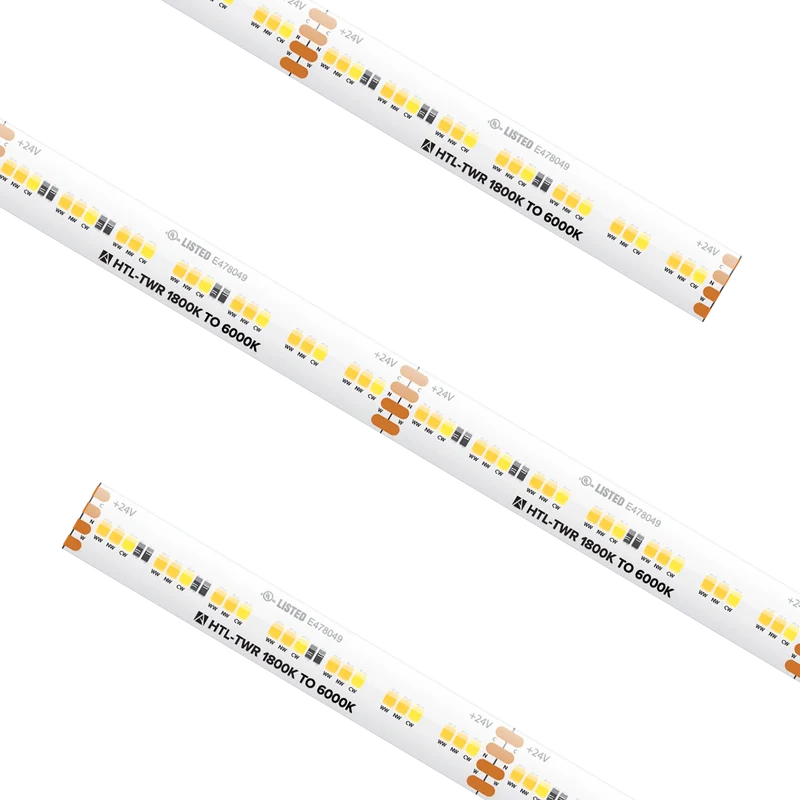

WIDE RANGE TUNABLE
Bring natural lighting indoors with our dynamic wide range tunable tape light. Featuring a 3-diode design that enables white light color blending from a warm glow of 1800K, all the way up to 6000K daylight, wide range tunable tape provides a far more satisfying natural environment to virtually any residential or commercial application.
- Dynamic wide range color tuning capabilities
- Side by side three diode configuration for even color blending
- Color tuning from 1800K up to 6000K CCT
- Lumen output ranging up to 411Lm per foot
- Cuttable every 2.46” with 16.4ft max run
- Easy installation featuring 3M VHB adhesive backing
- IP54 rating featuring nano-coating protective layer
- Control via DMX or secondary side lighting controls
- cULus Listed for indoor dry/damp locations
- 50,000 hours rated life
SERIES
HTL-TWR
INPUT VOLTAGE
24V DC
CCT
1800K to 6000K
CRI
90+
LUMENS
Up to 411Lm per ft
WATTAGE
5.9W per ft
CUTTABLE
Every 2.46"
WIDTH
10mm
MAX RUN
16.4ft
DIMMABLE
5-100% (Via DMX)
RATING
cULus Listed
RATED LIFE
50,000 hrs
PLX-HTL-TWR
1800K-6000K / 24V / 5.9W per ft / 411Lm per ft / 16.4 ft Reel
PLX-HTL-TW-CC
1800K-6000K / 24V / 5.9W per ft / 411Lm per ft / Custom Cut
TL-4PWR-HD
6" HD Power Feed
TL-4SPL-HD
HD Tape to Tape Splice Connector
TL-4JUMP6-HD
6" HD Linking Cable
TL-4JUMP24-HD
24" HD Linking Cable
WIRE-15-4PIN
15ft (20/4) Wire Spool
WIRE-CMP-100-6PIN
100ft (16/6) In-wall Rated Wire Spool
RCWY-PVC-1M
1m Plastic Wire Cover Raceway
SPECIFICATION SHEETS
INSTRUCTION MANUALS
IES FILES
ORDERING INFORMATION
Part Number | Voltage | CCT | CRI | Wattage | Lumens | Length | IP Rating | Cuttable | Max Run |
---|---|---|---|---|---|---|---|---|---|
PLX-HTL-TWR | 24V | 1800K-6000K | 90+ | 5.9W/ft | 411Lm/ft | 16.4ft | (IP54) Dry / Damp | 2.46" | 16.4ft |
PLX-HTL-TWR-CC | 24V | 1800K-6000K | 90+ | 5.9W/ft | 411Lm/ft | Custom Cut | (IP54) Dry / Damp | 2.46" | 16.4ft |
