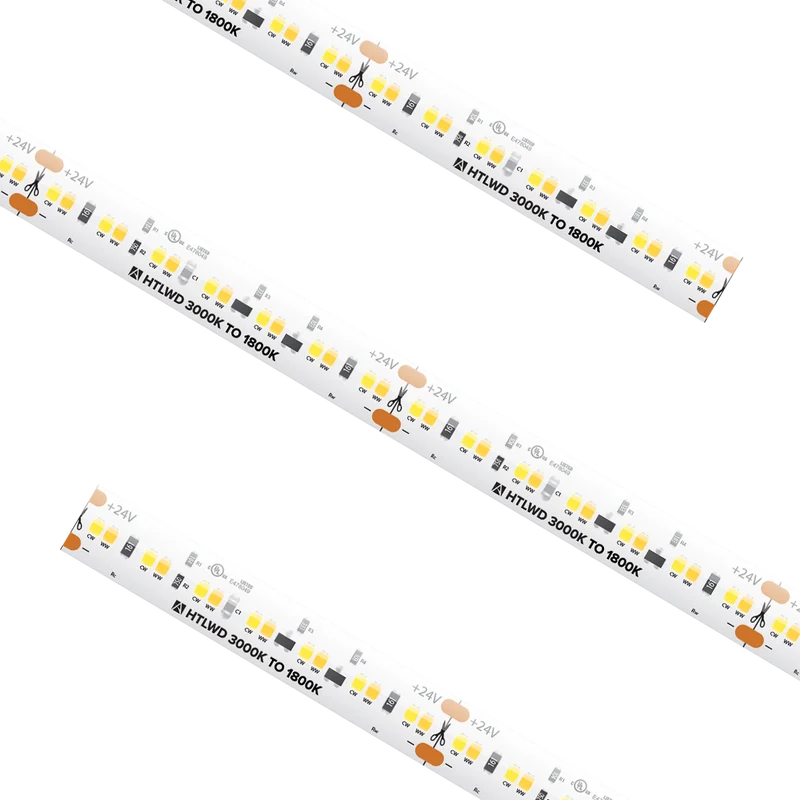

WARM DIM - HIGH OUTPUT
Our Dim-to-Warm tape light smoothly mimics the dimming of an incandescent lamp as it is dimmed. At full brightness, the warm dim tape light has a CCT of 3000K and as the light is dimmed, the color changes to an ultra deluxe tone reaching as low as 1800K. Simply control by using a 24V dimmable power supply and compatible dimmer switch - No additional controls required.
- Smoothly mimics the dimming of a traditional incandescent
- 3000K temperature at full brightness dims down to 1800K
- 90+ color rendering index
- Lumen output up to 335Lm per foot performance
- Cuttable every 3.94” with 20ft max run
- Easy installation featuring 3M VHB adhesive backing
- IP54 rating featuring nano-coating protective layer
- Dimmable (5-100%) with most ELV, TRIAC (PWM) dimmers
- cULus Listed for indoor dry/damp locations
- 50,000 hours rated life
SERIES
HTLWD
INPUT VOLTAGE
24V DC
CCT
1800K to 3000K Warm Dim
CRI
90+
LUMENS
Up to 335Lm per ft
WATTAGE
4W per ft
CUTTABLE
Every 3.94"
WIDTH
10mm
MAX RUN
20ft
DIMMABLE
TRIAC / ELV (5-100%)
RATING
cULus Listed
RATED LIFE
50,000 hrs
PLX-HTLWD-3018-16
1800K-3000K / 24V DC / 4W per ft / 335Lm per ft / 16.4 ft Reel
PLX-HTLWD-3018-CC
1800K-3000K / 24V DC / 4W per ft / 335Lm per ft / Custom Cut
TL-CONKIT
Trulink 4-in-1 Connector Power Feed
TL-BLKS
Trulink 4-in-1 Connector Block
TL-2PWR-HD
6" HD Power Feed
TL-2SPL-HD
HD Tape to Tape Splice Connector
TL-2JUMP6-HD
6" HD Linking Cable
TL-2JUMP24-HD
24" HD Linking Cable
WIRE-15-2PIN
15ft (20/2) Wire Spool
WIRE-CMP-100-3PIN
100ft (16/3) In-wall Rated Wire Spool
RCWY-PVC-1M
1m Plastic Wire Cover Raceway
SPECIFICATION SHEETS
IES FILES
ORDERING INFORMATION
Part Number | Voltage | CCT | CRI | Wattage | Lumens | Length | IP Rating | Cuttable | Max Run |
---|---|---|---|---|---|---|---|---|---|
PLX-HTLWD-3018-16 | 24V DC | 1800K-3000K Warm Dim | 90+ | 4W/ft | 335Lm/ft | 16.4ft | (IP54) Dry / Damp | 3.94" | 20ft |
PLX-HTLWD-3018-CC | 24V DC | 1800K-3000K Warm Dim | 90+ | 4W/ft | 335Lm/ft | Custom Cut | (IP54) Dry / Damp | 3.94" | 20ft |
