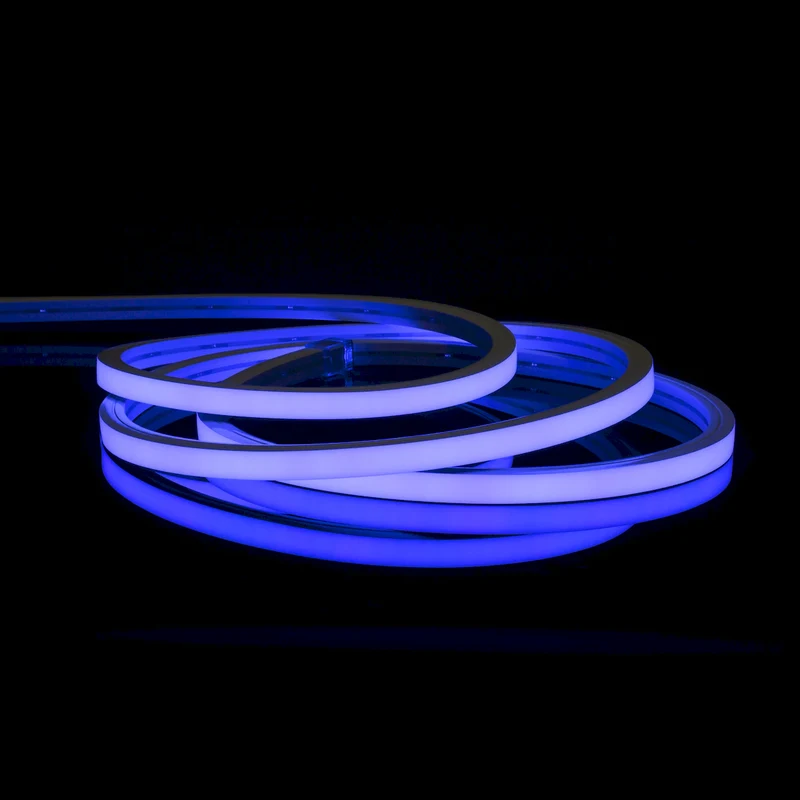

NEONFLEX PRO V-SERIES SINGLE COLOR
Neonflex Pro is the next generation solution for achieving seamless lines of direct view lighting for any architectural-grade install. UV, flame, and saltwater resistant, Neonflex Pro is not only durable, but easy to install. Featuring multiple power feed options, in-field customization makes for a versatile option for any interior or exterior application.
- Single color vertical (top bend) LED neon
- Available in Red, Green, and Blue
- Lumen output performance up to 149Lm per foot
- Cuttable every 1.97” with 55.7ft max run
- UV, flame, and saltwater resistant
- IP67 rating featuring sealed silicone jacketing
- Dimmable (5-100%) with most ELV and TRIAC dimmers
- cULus Listed for indoor and outdoor wet locations
- 54,000 hours rated life
SERIES
NFPROV-SC
VOLTAGE
24V DC
COLOR
Red / Green / Blue
WATTAGE
3.05W per foot
LUMENS
Up to 149Lm per foot
MAX RUN
55.7ft
CUT INCREMENTS
Every 1.97"
IP RATING
IP67 - Encased
DIMMABLE
ELV / TRIAC (5-100%)
RATING
cULus Listed
RATED LIFE
54,000 hours
NFPROV-RE-98
Red / 24V DC / 3.05W per ft / 60Lm per ft / 98ft Reel
NFPROV-RE-CC
Red / 24V DC / 3.05W per ft / 60Lm per ft / Custom Cut
NFPROV-GR-98
Green / 24V DC / 3.05W per ft / 149Lm per ft / 98ft Reel
NFPROV-GR-CC
Green / 24V DC / 3.05W per ft / 149Lm per ft / Custom Cut
NFPROV-BL-98
Blue / 24V DC / 3.05W per ft / 30Lm per ft / 98 ft Reel
NFPROV-BL-CC
Blue / 24V DC / 3.05W per ft / 30Lm per ft / Custom Cut
NFPROV-CONKIT-2PIN-FRNTL
36” Pro-V Power Feed - Front Left (2-pin) - with End Cap
NFPROV-CONKIT-2PIN-FRNTR
36” Pro-V Power Feed - Front Right (2-pin) - with End Cap
NFPROV-CONKIT-2PIN-BTTML
36” Pro-V Power Feed - Bottom Left (2-pin) - with End Cap
NFPROV-CONKIT-2PIN-BTTMR
36” Pro-V Power Feed - Bottom Right (2-pin) - with End Cap
NFPROV-CONKIT-2PIN-SIDL
36” Pro-V Power Feed - Side Left (2-pin) - with End Cap
NFPROV-CONKIT-2PIN-SIDR
36” Pro-V Power Feed - Side Right (2-pin) - with End Cap
NFPROV-2JUMP6
6” Pro-V Linking Cable - Front Feed (2-pin)
NFPROV-2JUMP12
12” Pro-V Linking Cable - Front Feed (2-pin)
NFPROV-2JUMP24
24” Pro-V Linking Cable - Front Feed (2-pin)
NFPROV-2JUMP36
36” Pro-V Linking Cable - Front Feed (2-pin)
NFPROV-CHAN-1M
Pro-V 1m Aluminum Mounting Channel
