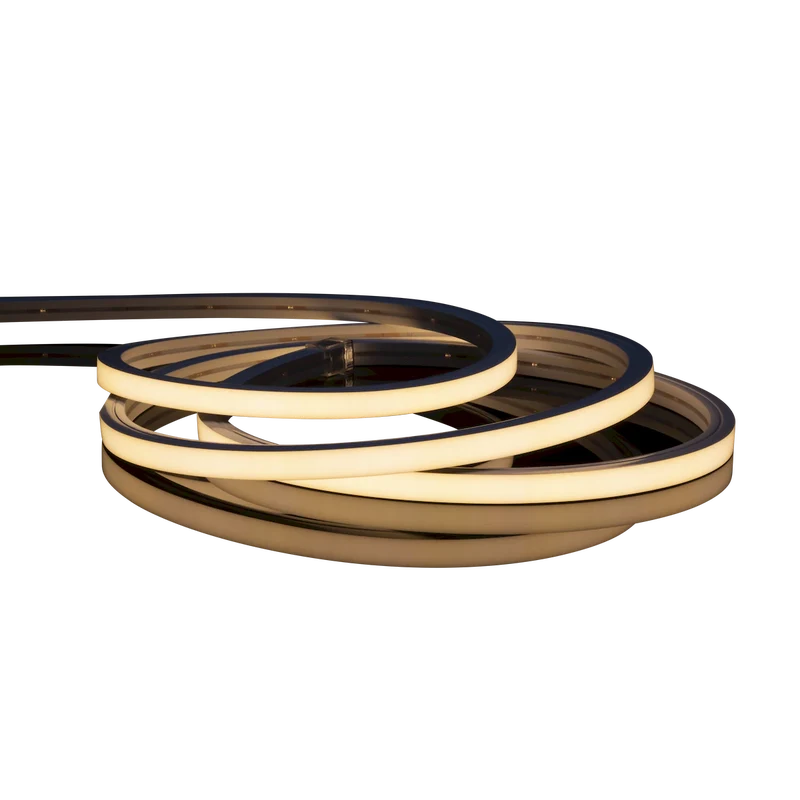

NEONFLEX PRO V-SERIES STATIC WHITE
Neonflex Pro is the next generation solution for achieving seamless lines of direct view lighting for any architectural-grade install. UV, flame, and saltwater resistant, Neonflex Pro is not only durable, but easy to install. Featuring multiple power feed options, in-field customization makes for a versatile option for any interior or exterior application.
- Static white vertical (top bend) LED neon
- Available in 2700K, 3000K, and 4000K
- 90+ color rendering index
- Lumen output performance up to 167Lm per foot
- Cuttable every 1.97” with 55.7ft max run
- UV, flame, and saltwater resistant
- IP67 rating featuring sealed silicone jacketing
- Dimmable (5-100%) with most ELV and TRIAC dimmers
- cULus Listed for indoor and outdoor wet locations
- 54,000 hours rated life
SERIES
NFPROV-SW
VOLTAGE
24V DC
CCT
2700K / 3000K / 4000K
CRI
90+
WATTAGE
3.05W per foot
LUMENS
Up to 167Lm per foot
MAX RUN
55.7ft
CUT INCREMENTS
Every 1.97"
IP RATING
IP67 - Encased
DIMMABLE
ELV / TRIAC (5-100%)
RATING
cULus Listed
RATED LIFE
54,000 hours
NFPROV-27-98
2700K / 24V DC / 3.05W per ft / 161Lm per ft / 98ft Reel
NFPROV-27-CC
2700K / 24V DC / 3.05W per ft / 161Lm per ft / Custom Cut
NFPROV-30-98
3000K / 24V DC / 3.05W per ft / 158Lm per ft / 98ft Reel
NFPROV-30-CC
3000K / 24V DC / 3.05W per ft / 158Lm per ft / Custom Cut
NFPROV-40-98
4000K / 24V DC / 3.05W per ft / 167Lm per ft / 98 ft Reel
NFPROV-40-CC
4000K / 24V DC / 3.05W per ft / 167Lm per ft / Custom Cut
NFPROV-CONKIT-2PIN-FRNTL
36” Pro-V Power Feed - Front Left (2-pin) - with End Cap
NFPROV-CONKIT-2PIN-FRNTR
36” Pro-V Power Feed - Front Right (2-pin) - with End Cap
NFPROV-CONKIT-2PIN-BTTML
36” Pro-V Power Feed - Bottom Left (2-pin) - with End Cap
NFPROV-CONKIT-2PIN-BTTMR
36” Pro-V Power Feed - Bottom Right (2-pin) - with End Cap
NFPROV-CONKIT-2PIN-SIDL
36” Pro-V Power Feed - Side Left (2-pin) - with End Cap
NFPROV-CONKIT-2PIN-SIDR
36” Pro-V Power Feed - Side Right (2-pin) - with End Cap
NFPROV-2JUMP6
6” Pro-V Linking Cable - Front Feed (2-pin)
NFPROV-2JUMP12
12” Pro-V Linking Cable - Front Feed (2-pin)
NFPROV-2JUMP24
24” Pro-V Linking Cable - Front Feed (2-pin)
NFPROV-2JUMP36
36” Pro-V Linking Cable - Front Feed (2-pin)
NFPROV-CHAN-1M
Pro-V 1m Aluminum Mounting Channel
