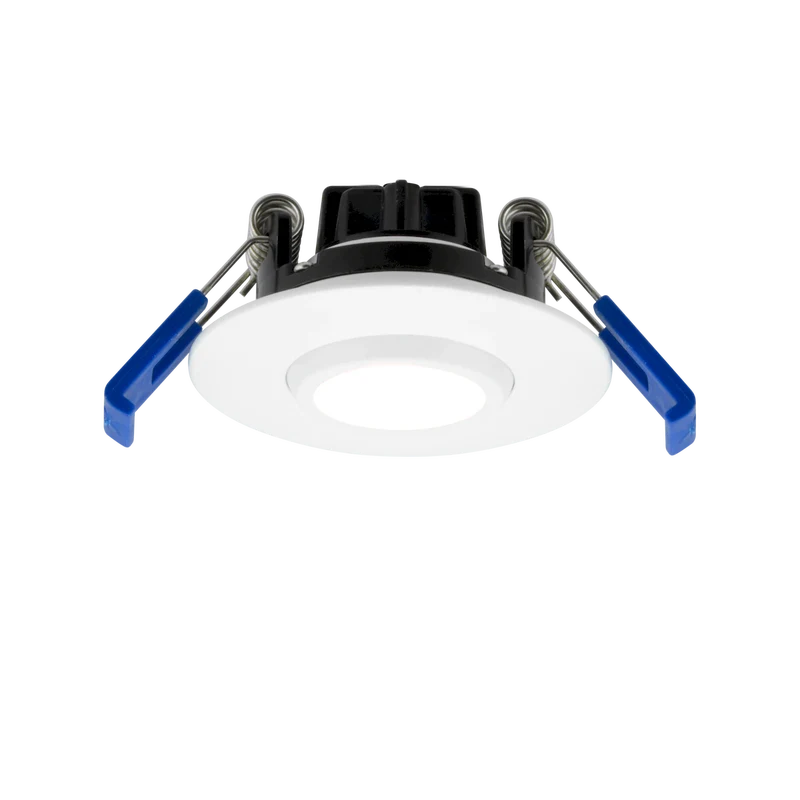

Axis 1

These IC rated recessed gimbal downlights are great for sloped ceilings and other applications where one may want to direct light. Available in two color temperature options and white finish, the Axis 1 mini downlight produces up to 350 lumen output performance.

  • Excellent color rendering (90+ CRI)
  • Available in 2700K or 3000K warm white
  • Lumen output up to 350 Lumens
  • Dimmable with most TRIAC or ELV dimmers
  • Remote driver with hardware junction box
  • Type IC and cETLus Listed for wet locations
  • 50,000 hours rated life
  • ENERGY STAR Certified, JA8 Compliant
SERIES
AXIS-1
VOLTAGE
120V AC
CCT
2700K / 3000K
CRI
90+
WATTAGE
5W
LUMENS
Up to 350Lm
DIMMABLE
10-100% TRIAC / CL / ELV
BEAM ANGLE
38° (30° Tilt)
RATING
cETLus Listed / Type IC / Wet Location
RATED LIFE
50,000 Hours
A1-27-WH

120V / 2700K / 325Lm / 5W / White

A1-30-WH

120V / 3000K / 350Lm / 5W / White

RP-H-E2
1" New Construction Rough-in Plate w/Hanger Bars
