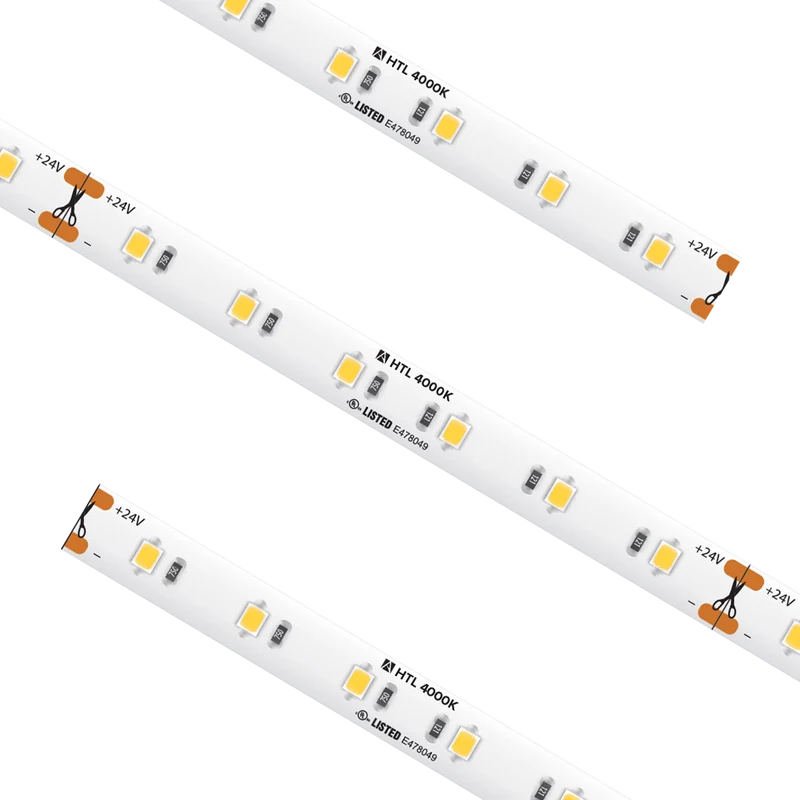

High Output

Our most popular tape light option, the High Output series is a go to for most applications in part to the great lumen output with a slightly longer max run. With up to 310 lumens a foot and a max run up to 22 feet, High Output tape light provides a perfect blend of lumens, light quality, and color temperature options for multiple applications.

  • Excellent color rendering (96+ CRI)
  • Color temperatures available from 2400K to 4000K
  • 200-310 lumens per foot performance
  • Consuming only 4.6 watts per foot
  • Dimmable with most electronic low voltage (ELV) dimmers
  • Run lengths up to 22 feet and cuttable every 3.94"
SERIES
HTL
INPUT VOLTAGE
24V
CCT
2400K / 2700K / 3000K / 4000K
CRI
96+
LUMENS
Up to 310Lm per ft
WATTAGE
4.6W per ft
CUTTABLE
Every 3.94"
WIDTH
10mm
MAX RUN
22ft
DIMMABLE
5-100%
RATING
cULus Listed
RATED LIFE
50,000 hrs
PLX-HTL-UWX

2400K / 24V / 4.6W per ft / 255Lm per ft / 16.4 ft Reel

PLX-HTL-UWX-CC

2400K / 24V / 4.69W per ft / 255Lm per ft / Custom Cut

PLX-HTL-UWW

2700K / 24V / 4.6W per ft / 285Lm per ft / 16.4 ft Reel

PLX-HTL65-UWW

2700K / 24V / 4.6W per ft / 200Lm per ft / 16.4 ft Reel (IP65)

PLX-HTL-UWW-100

2700K / 24V / 4.6W per ft / 285Lm per ft / 100 ft Reel

PLX-HTL-UWW-CC

2700K / 24V / 4.6W per ft / 285Lm per ft / Custom Cut

PLX-HTL-WW

3000K / 24V / 4.6W per ft / 300Lm per ft / 16.4 ft Reel

PLX-HTL65-WW

3000K / 24V / 4.6W per ft / 220Lm per ft / 16.4 ft Reel (IP65)

PLX-HTL-WW-100

3000K / 24V / 4.6W per ft / 300Lm per ft / 100 ft Reel

PLX-HTL-WW-CC

3000K / 24V / 4.6W per ft / 300Lm per ft / Custom Cut

PLX-HTL-WH

4000K / 24V / 4.6W per ft / 310Lm per ft / 16.4 ft Reel

PLX-HTL-WH-CC

4000K / 24V / 4.6W per ft / 310Lm per ft / Custom Cut

TL-CONKIT
Trulink 4-in-1 Connector Power Feed
TL-BLKS
Trulink 4-in-1 Connector Block
TL-2PWR-HD
6" HD Power Feed
TL-2SPL-HD
HD Tape to Tape Splice Connector
TL-2JUMP24-HD
24" HD Linking Cable
TL-2JUMP6-HD
6" HD Linking Cable
WIRE-15-2PIN
15ft (20/2) Wire Spool
RCWY-PVC-1M
1m Plastic Wire Cover Raceway
INLINE-SC-CTRL
Simple Select In-line Controller
SPECIFICATION SHEETS - Coming Soon
IES FILES - Coming Soon

ORDERING INFORMATION

Part NumberVoltageCCTCRIWattageLumensLengthIP RatingCuttableMax Run
PLX-HTL-UWX24V2400K96+4.6W/ft285Lm/ft16.4 ft(IP54) Dry / Damp3.94"22 ft
PLX-HTL-UWX-CC24V2400K96+4.6W/ft285Lm/ftCustom Cut(IP54) Dry / Damp3.94"22 ft
PLX-HTL-UWW24V2700K96+4.6W/ft285Lm/ft16.4 ft(IP54) Dry / Damp3.94"22 ft
PLX-HTL-UWW-CC24V2700K96+4.6W/ft285Lm/ftCustom Cut(IP54) Dry / Damp3.94"22 ft
PLX-HTL65-UWW24V2700K96+4.6W/ft200Lm/ft16.4 ft(IP65) Wet3.94"22 ft
PLX-HTL-UWW-10024V2700K96+4.6W/ft285Lm/ft100 ft(IP54) Dry / Damp3.94"22 ft
PLX-HTL-WW24V3000K96+4.6W/ft300Lm/ft16.4 ft(IP54) Dry / Damp3.94"22 ft
PLX-HTL-WW-CC24V3000K96+4.6W/ft300Lm/ftCustom Cut(IP54) Dry / DampN/A22 ft
PLX-HTL65-WW24V3000K96+4.6W/ft220Lm/ft16.4 ft(IP65) Wet3.94"22 ft
PLX-HTL-WW-10024V3000K96+4.6W/ft300Lm/ft100 ft(IP54) Dry / Damp3.94"22 ft
PLX-HTL-WH24V4000K96+4.6W/ft310Lm/ft16.4 ft(IP54) Dry / Damp3.94"22 ft
PLX-HTL-WH-CC24V4000K96+4.6W/ft310Lm/ftCustom Cut(IP54) Dry / Damp3.94"22 ft
