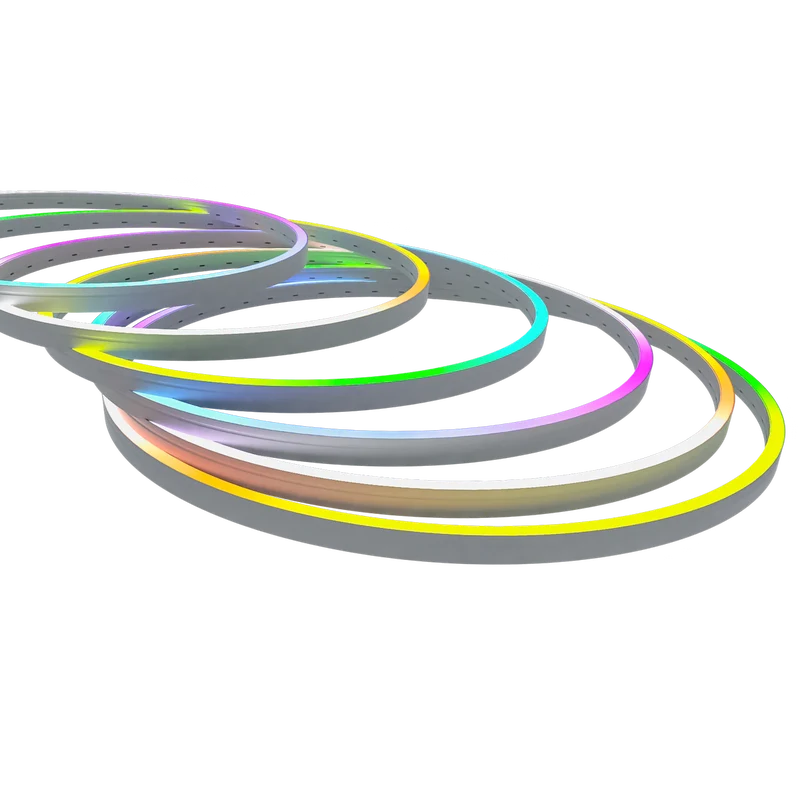

NEONFLEX PRO-L DYNAMIC RGBW

NeonFlex Pro offers pixel level control for endless interior or exterior applications, including effects such as chasing, popcorning, waves, and strobe. Cuttable every 4.92", each segment is addressable with DMX 512 protocol, enabling independent control of dynamic color and design. Sleek in profile and simple in installation, NeonFlex Pro is the newest evolution in direct view lighting for seamless illumination.

  • RGBW lateral (side bend) LED neon with white jacket
  • Lumen output performance up to 97 Lm per foot
  • Consumes up to 4.26W per foot
  • Available as custom order - cuttable every 4.92” with 16.4ft max run
  • UV, flame, and saltwater resistant
  • Sealed white silicone jacketing featuring IP67 rating
  • Dimmable (5-100%) with most DMX or SPI controls
  • cULus Listed for indoor and outdoor wet locations
  • 30,000 hours rated life
Series
NFPROL
Voltage
24V DC
Color
Digital Pixel RGBW
Wattage
4.26W/ft (14W/m)
Lumens
Up to 97Lm / ft
Max Run
16.4ft
Cut Increments
Every 4.92"
IP Rating
IP67 - Jacketed
Protocol
DMX IC SM17512 / SPI UCS2904B
Resolution
4.92” (125mm) pixel resolution
Dimmable
0-100%
Rating
cULus Listed - Wet Location
Rated Life
30,000 hours
PZM-NFPROL-ONYX-CHAN-1M
1m Black Channel 17.3mm W x 21.1mm H
