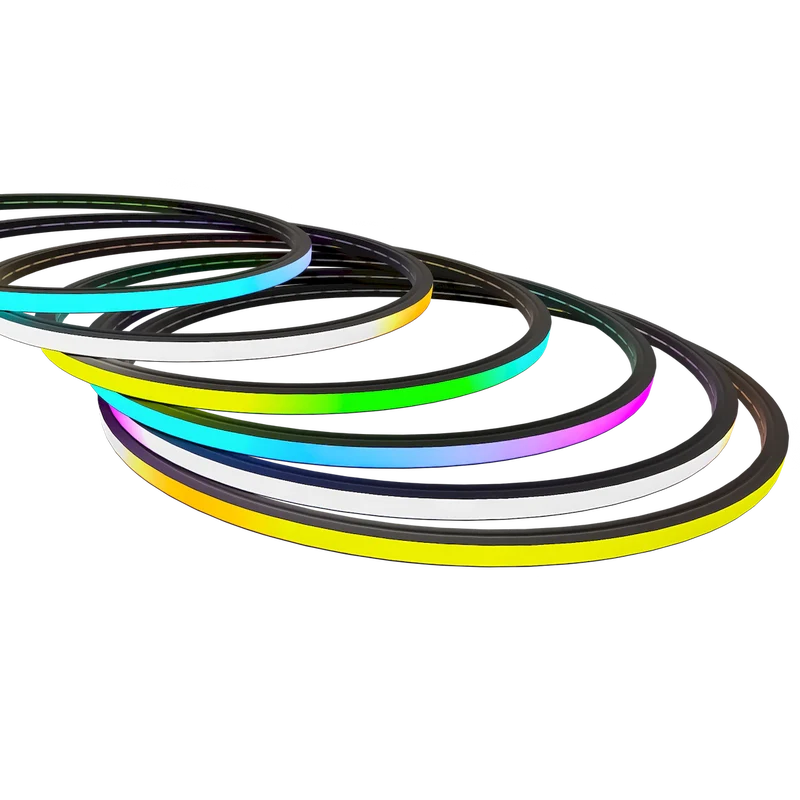

NEONFLEX PRO-V ONYX DYNAMIC RGBW
NeoFlux Pro Onyx is the newest evolution in direct view lighting for seamless illumination of darkened architectural design. Cuttable every 4.92”, each segment is addressable with DMX 512 protocol, enabling independent control of dynamic color and design. Sleek in profile and simple to install, NeoFlux Pro Onyx offers pixel level control for endless interior or exterior applications, including effects such as chasing, popcorning, waves, and strobe.
- Dynamic RGBW vertical (top bend) LED neon with black jacket
- Lumen output performance up to 43Lm per foot
- Consumes up to 4.42W per foot
- Custom cut program cuttable every 4.92” with 16.4ft max run
- UV, flame, and saltwater resistant
- IP67 rating featuring sealed silicone jacketing
- Dimmable (0-100%) with DMX or SPI controls
- cULus Listed for indoor and outdoor wet locations
- 30,000 hours rated life
Series
NFPROV-ONYX
Voltage
24V DC
Color
Digital Pixel RGBW
Wattage
4.42W/ft
Lumens
Up to 43Lm/ft
Max Run
16.4ft
IP Rating
IP67 - Jacketed
Protocol
DMX IC SM17512 / SPI UCS2904B
Resolution
4.92” (125mm) pixel resolution
Dimmable
0-100%
Rating
cULus Listed - Wet Location
Rated Life
30,000 hours
NFPROL-ONYX-CHAN-1M
1m Black Channel 17.3mm W x 21.1mm H
