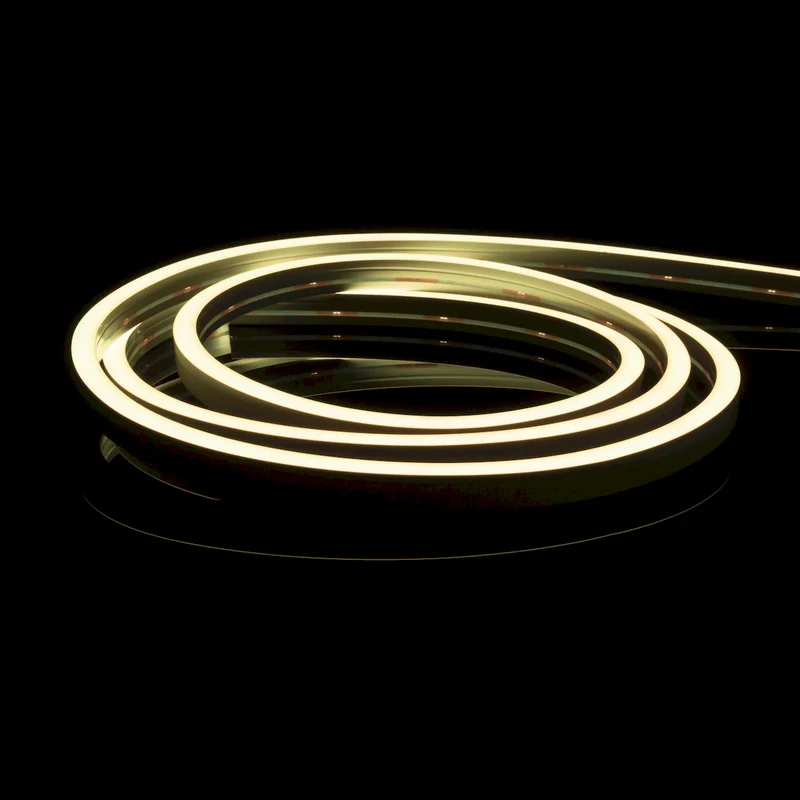

NEONFLEX PRO L-SERIES STATIC WHITE

Neonflex Pro is the next generation solution for achieving seamless lines of direct view lighting for any architectural-grade install. UV, flame, and saltwater resistant, Neonflex Pro is not only durable, but easy to install. Featuring multiple power feed options, in-field customization makes for a versatile option for any interior or exterior
application.

  • Static white lateral (side bend) LED neon
  • Available in 2700K, 3000K, and 4000K
  • 90+ color rendering index
  • Lumen output performance up to 167Lm per foot
  • Cuttable every 1.96” with 55.7ft max run
  • UV, flame, and saltwater resistant
  • IP67 rating featuring sealed silicone jacketing
  • Dimmable (5-100%) with most ELV and TRIAC dimmers
  • cULus Listed for indoor and outdoor wet locations
  • 54,000 hours rated life
SERIES
NFPROL-SW
VOLTAGE
24V
CCT
2700K / 3000K / 4000K
CRI
90+
WATTAGE
3.05W per foot
LUMENS
Up to 167Lm per foot
MAX RUN
55.7ft
CUT INCREMENTS
Every 1.96"
IP RATING
IP67 - Encased
DIMMABLE
ELV / TRIAC (5-100%)
RATING
cULus Listed
RATED LIFE
54,000 hours
NFPROL-27-98

2700K / 24V DC / 3.05W per ft / 91Lm per ft / 98ft Reel

NFPROL-30-98

3000K / 24V DC / 3.05W per ft / 94Lm per ft / 98ft Reel

NFPROL-40-98

4000K / 24V DC / 3.05W per ft / 103Lm per ft / 98 ft Reel

NFPROL-27-CC

2700K / 24V DC / 3.05W per ft / 91Lm per ft / Custom Cut

NFPROL-30-CC

3000K / 24V DC / 3.05W per ft / 94Lm per ft / Custom Cut

NFPROL-40-CC

4000K / 24V DC / 3.05W per ft / 103Lm per ft / Custom Cut

NFPROL-CONKIT-2PIN-FRNTL
36” Pro-L Power Feed - Front Left (2-pin)
NFPROL-CONKIT-2PIN-FRNTR
36” Pro-L Power Feed - Front Right (2-pin)
NFPROL-CONKIT-2PIN-BTTML
36” Pro-L Power Feed - Bottom Left (2-pin)
NFPROL-CONKIT-2PIN-BTTMR
36” Pro-L Power Feed - Bottom Right (2-pin)
NFPROL-CONKIT-2PIN-SIDL
36” Pro-L Power Feed - Side Left (2-pin)
NFPROL-CONKIT-2PIN-SIDR
36” Pro-L Power Feed - Side Right (2-pin)
NFPROL-2JUMP6
6” Pro-L Linking Cable - Front Feed (2-pin)
NFPROL-2JUMP12
12” Pro-L Linking Cable - Front Feed (2-pin)
NFPROL-2JUMP24
24” Pro-L Linking Cable - Front Feed (2-pin)
NFPROL-2JUMP36
36” Pro-L Linking Cable - Front Feed (2-pin)
NFPROL-END
Pro-L End Cap
NFPROL-CHAN-1M
Pro-L 1m Aluminum Channel 17.3mm W x 21.1mm H
