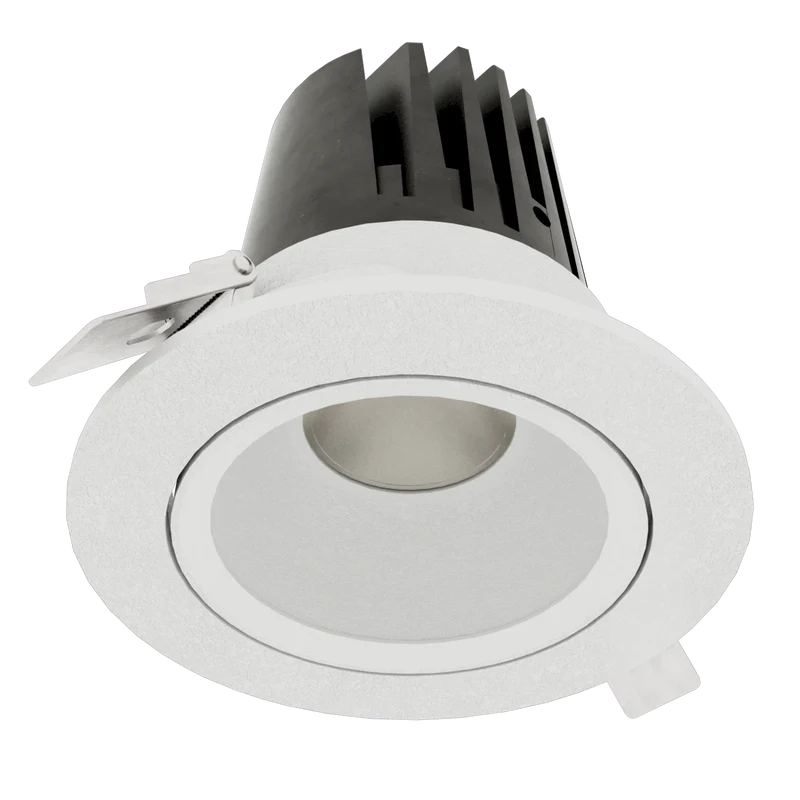

WARM DIM DOWNLIGHTS

Warm dim technology provides the glow and ambience of traditional
incandescent lighting with flicker-free, smooth transition, high
efficiency LED Lighting. These 4” downlights have been designed
with style in mind. A sleek body with polished finish and engineered
optics provide the perfect solution for general and accent lighting.

  • Excellent color rendering (90+ CRI)
  • Aluminum housing with polycarbonate lens
  • Warm Dim from 3000K-1800K
  • Lumen output up to 800 Lumens
  • Available in 4” static and 4” gimbal with 30° lens tilt
  • Dimmable with most TRIAC/ELV dimmers
  • Spring loaded mounting clips for direct install
  • Type IC and cETLus Listed for Damp locations
  • 50,000 hours rated life
SERIES
PLX-DL4
VOLTAGE
120V AC
CCT
Warm Dim 3000K-1800K
CRI
90+
WATTAGE
11W
LUMENS
800Lm
DIMMABLE
10-100% TRIAC / ELV
BEAM ANGLE
30° (30° Tilt on WD4S)
RATING
cETLus Listed Type IC Damp Locations
RATED LIFE
50,000 Hours
PLX-DL4-WTD-3018-WH

120V AC / Warm Dim 3000K-1800K / 800Lm / 11W / White / Static

PLX-DL4S-WTD-3018-WH

120V AC / Warm Dim 3000K-1800K / 800Lm / 11W / White / Gimbal
