SWITCHEX

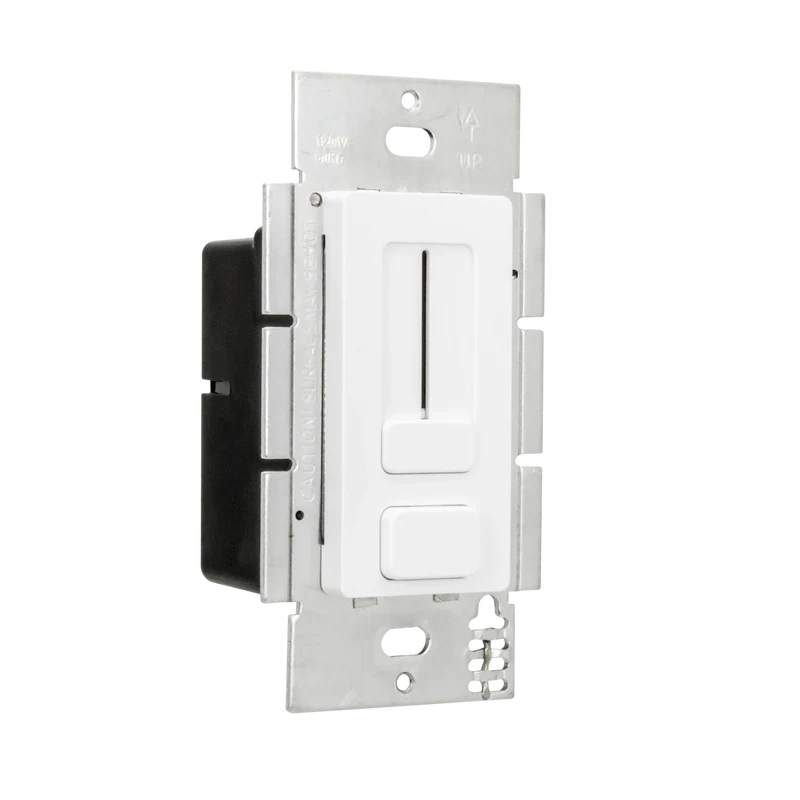

SWITCHEX simplifies LED array lighting systems by combining an in-wall LED dimmer switch and power supply into a single integrated unit. SWITCHEX mounts in a standard in-wall switch box, accepts 120V AC and converts to low voltage DC. SWITCHEX is compatible with most 12VDC and 24VDC tape light and fixtures.

All-in-one LED Driver + In-Wall Dimmer Switch

  • Simplifies LED installation by eliminating compatibility issues
  • Fits in a standard recessed electrical box
  • 5-100% dimming range - No minimum load
  • Single Pole preset dimmer with on/off push switch
  • Adjustable voltage output dial to address voltage drop
  • Includes voltage barrier partition for line and low voltage installation
  • No derating required when ganging units
  • Power failure memory recalls settings prior to interruption
  • Includes three face plates: White, Almond, and Dark Brown
    (Trim plates not included)
SERIES
SWX
INPUT VOLTAGE
120V AC
OUTPUT VOLTAGE
12V DC / 24V DC
MAX LOAD
60W / 100W
MINIUMUM LOAD
N/A
DIMMABLE
5-100%
DIMENSIONS
1.4"D x 2.1"W x 4.1"H
RATING
cULus Listed (Indoor use only)
SWX-60-12

60W / 120V Input / 12V DC Output / Switchex All-in-One

SWX-60-24

60W / 120V Input / 24V DC Output / Switchex All-in-One

SWX-100-24

100W / 120V Input / 24V DC Output / Switchex All-in-One

CATALOG CUT SHEETS

Switchex Series Cut Sheet - Coming Soon
