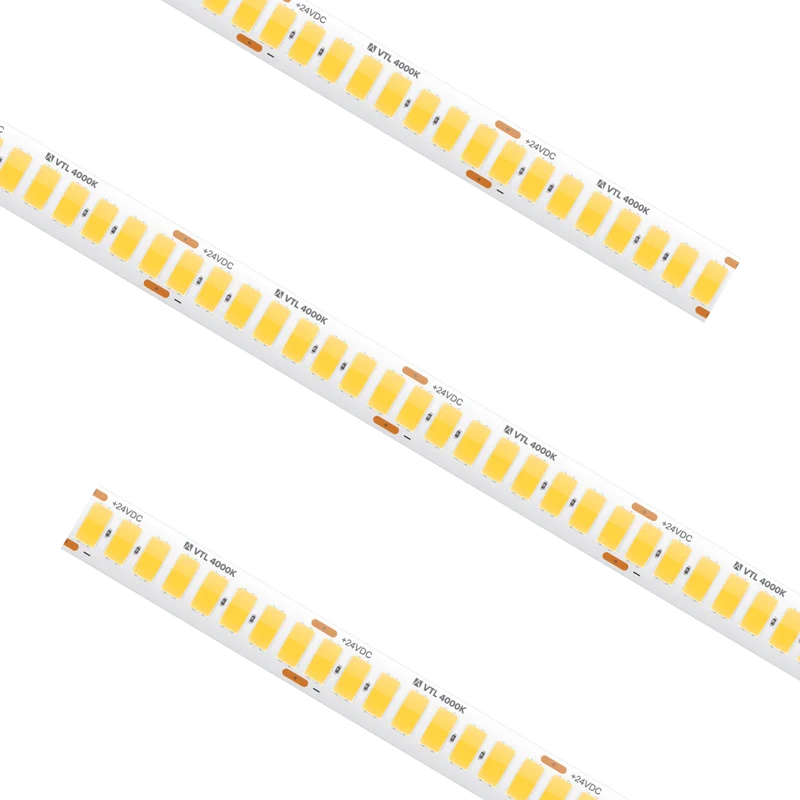

VEGA

Big on brightness, small on form factor. With the Vega series you can achieve all the benefits of extreme light output from larger form factor fixtures in an ultra compact LED tape light strip. Extremely close diode spacing virtually eliminates any LED dotting or reflections providing a seamless line of light making for a perfect solution for general ambient lighting applications.


  • One of the brightest lumen output per foot tape light available
  • Lumen output ranging from 1030Lm to 1163Lm per foot
  • Available in 2700K, 3000K, 3500K, and 4000K
  • 80+ color rendering index
  • Cuttable every 1.4” with 13.1ft max run
  • Easy installation featuring 3M VHB adhesive backing
  • IP54 rating featuring nano-coating protective layer
  • Dimmable (5-100%) with most ELV, TRIAC dimmers
  • cULus Listed for indoor dry/damp locations
  • 50,000 hours rated life / 5-year limited warranty
SERIES
VTL
INPUT VOLTAGE
24V DC
CCT
2700K / 3000K / 3500K / 4000K / 5000K
CRI
80+
LUMENS
Up to 1163Lm per ft
WATTAGE
7W per ft
CUTTABLE
Every 1.4"
WIDTH
10mm
MAX RUN
13.1ft
DIMMABLE
5-100%
RATING
cULus Listed
RATED LIFE
50,000 Hours
PLX-VTL-UWW-13

2700K / 24V / 7W per ft / 1030Lm per ft / 13.1 ft Reel

PLX-VTL-WW-13

3000K / 24V / 7W per ft / 1090Lm per ft / 13.1 ft Reel

PLX-VTL-NW-13

3500K / 24V / 7W per ft / 1140Lm per ft / 13.1 ft Reel

PLX-VTL-WH-13

4000K / 24V / 7W per ft / 1163Lm per ft / 13.1 ft Reel

PLX-VTL-UWW-CC

2700K / 24V / 7W per ft / 1030Lm per ft / Custom Cut

PLX-VTL-WW-CC

3000K / 24V / 7W per ft / 1090Lm per ft / Custom Cut

PLX-VTL-NW-CC

3500K / 24V / 7W per ft / 1140Lm per ft / Custom Cut

PLX-VTL-WH-CC

4000K / 24V / 7W per ft / 1163Lm per ft / Custom Cut

TL-CONKIT
Trulink 4-in-1 Conneciton Kit
TL-BLKS
Trulink 4-in-1 Connector Block (qty 10)
TL-2PWR-HD
6" HD Power Feed
TL-2JUMP6-HD
6" HD Linking Cable
TL-2JUMP24-HD
24" HD Linking Cable
TL-2SPL-HD
HD Tape to Tape Splice Connector
WIRE-15-2PIN
15ft (20/2) Wire Spool
WIRE-CMP-100-3PIN
100ft (16/3) In-wall Rated Wire Spool
RCWY-PVC-1M
1m Plastic Wire Cover Raceway
INLINE-SC-CTRL
Simple Select Single Color In-line Controller
SPECIFICATION SHEETS
IES FILES - Coming Soon

Vega Series IES Files - Coming Soon

ORDERING INFORMATION

Part NumberVoltageCCTCRIWattageLumensLengthIP RatingCuttableMax Run
PLX-VTL-UWW-1324V2700K80+7W/ft1030Lm/ft13.1 ft(IP54) Dry / Damp1.4"13.1 ft
PLX-VTL-WW-1324V3000K80+7W/ft1090Lm/ft13.1ft(IP54) Dry / Damp1.4"13.1ft
PLX-VTL-NW-1324V3500K80+7W/ft1140Lm/ft13.1 ft(IP54) Dry / Damp1.4"13.1 ft
PLX-VTL-WH-1324V4000K80+7W/ft1163Lm/ft13.1 ft(IP54) Dry / Damp1.4"13.1 ft
PLX-VTL-UWW-CC24V2700K80+7W/ft1030Lm/ftCustom Cut(IP54) Dry / Damp1.4"13.1 ft
PLX-VTL-WW-CC24V3000K80+7W/ft1090Lm/ftCustom Cut(IP54) Dry / Damp1.4"13.1 ft
PLX-VTL-NW-CC24V3500K80+7W/ft1140Lm/ftCustom Cut(IP54) Dry / Damp1.4"13.1 ft
PLX-VTL-WH-CC24V4000K80+7W/ft1163Lm/ftCustom Cut(IP54) Dry / Damp1.4"13.1 ft
