LED-DR 30W
The LED-DR Series drivers feature universal 100-240V AC power input with exceptional reliability and class II rating. Standard built-in protections include short circuit, over-voltage, and overload protections. The LED-DR series is recommended to be used in non-dimming applications or when used to power secondary side dimming controls in low voltage LED fixture applications.
- 12V or 24V DC Constant voltage hardwire 30W LED driver
- Universal 100-240V AC input with built-in constant current limiting circuit
- Short circuit, over-load, and over temperature protections
- Operating temperature: -30~+50°C
- Compact 94V-0 fire resistant plastic enclosure
- Class 2 / cURus Recognized - Damp location rated
SERIES
LED-DR30
MAX LOAD
30W
MINIMUM LOAD
6W
INPUT VOLTAGE
100-240V AC
OUTPUT VOLTAGE
12V DC / 24V DC
DIMMABLE
Non-Dimmable
OPERATING TEMP
-22°F to 122°F (-30°C to 50°C)
RATING
cURus Recognized (Damp Location)
DIMENSIONS
6-1/4”L x 1-3/4”W x 1-3/16”H
LED-DR30-12
LED-DR 12V - 30W Driver
LED-DR30-24
LED-DR 24V - 30W Driver

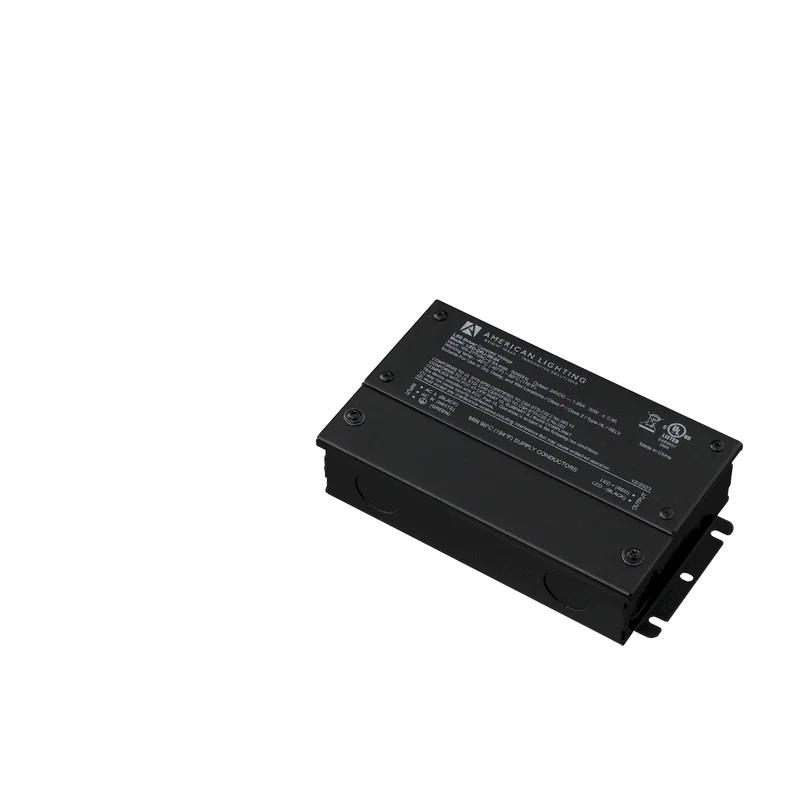

ENCL-11
Power Supply Enclosure (11-1/2”L x 1-7/8”W x 1-3/4”H)
