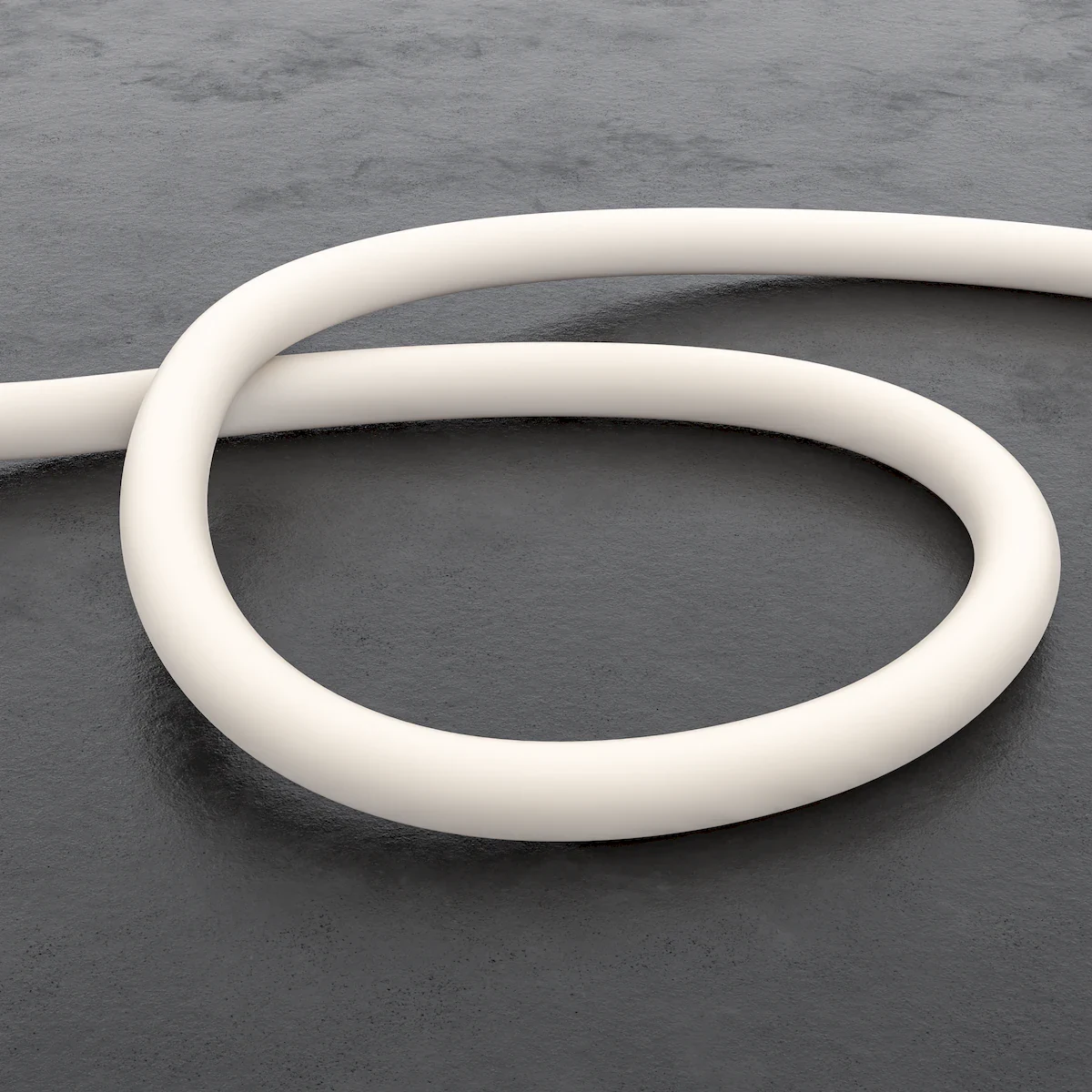

NEONFLEX PRO 360 SINGLE COLOR
NeonFlex Pro 360 mimics traditional neon featuring uniform 360° illumination that eliminates nearly all shadowing. Featuring a universal bend orientation design, configure NeonFluex Pro 360 to accommodate any direct view application by surface mounting or suspending to create a dynamic and intriguing neon display.
- 360° illumination with universal bending orientation
- 24V DC low voltage input
- Colors available: Red / Green / Blue
- Easily bend to any shape with superior flexibility
- UV, flame, and saltwater resistant featuring IP65 rating
- Cuttable every 1.97" with maximum run lengths up to 16.4ft (Factory cut and assembled only)
- Multiple mounting options available
- 54,000 hours rated life
SERIES
NFPRO360-SC
VOLTAGE
24V DC
COLOR
Red / Green / Blue
WATTAGE
3.04W per foot
MAX RUN
16.4ft
CUT INCREMENTS
Every 1.97" (Factory cut and assembled only)
IP RATING
IP65
DIMMABLE
5-100%
RATING
cULus Listed - Wet Locations
RATED LIFE
54,000 hours
PLX-NFPRO360-RE-16
Red / 24V DC / 3.04W per ft / 16.4ft Reel
PLX-NFPRO360-BL-16
Blue / 24V DC / 3.04W per ft / 16.4ft Reel
PLX-NFPRO360-GR-16
Green / 24V DC / 3.04W per ft / 16.4ft Reel
PLX-NFPRO360-RE-CC
Red / 24V DC / 3.04W per ft / Custom Cut
PLX-NFPRO360-BL-CC
Blue / 24V DC / 3.04W per ft / Custom Cut
PLX-NFPRO360-GR-CC
Green / 24V DC / 3.04W per ft / Custom Cut
PLX-NFPRO360-END
NFPro 360 Silicone Neonflex, Closed endcap
PLX-NFPRO360-TRACK-1M
1Mtr/pcs PC profile +3pcs screw + 3pcs rubber plug
PLX-NFPRO360-CLIPSA
4pcs PC transparent clips + 4 screws+ 4pcs rubber plug
PLX-NFPRO360-CLIPSB
4pair of fully-covered clips + 4 pcs screw + 4pcs rubber plug
PLX-NFPRO360-LIFTL
2pcs PC clips+2sets of hanging wire + 2pcs screws
PLX-NFPRO360-LIFTVA
1 set of Surface vertical lifting accessories + 2pcs screw + 2pcs rubber plug
PLX-NFPRO360-LIFTU
2 set of Surface U-shaped lifting accessories + 4pcs screw + 4pcs rubber plug
PLX-NFPRO360-JOINA
1 pc metal connector, 8pcs screws
PLX-NFPRO360-JOINB
1 pcs standard connector, 8pcs screw
PLX-NFPRO360-LIFTL-TRACK-1M
1meter PC profile + 2sets of hanging wire + 2pcs screws
PLX-NFPRO360-LIFTL-TRACKADJ-1M
1pcs 1m PC profile + 2pcs fix-component + 2set of stretchable pole
PLX-NFPRO360-LIFTL-CLIPADJA
2pcs PC clips+ 2pcs fix-component + 2set of stretchable pole
PLX-NFPRO360-LIFTL-CLIPADJB
2pair of fully-covered clips + 2pcs fixed-component + 2set of stretchable pole
PLX-NFPRO360-LIFTL-CLIPADJC
2pcs PC locking clips + 8pcs screws + 2pcs fix-component + 2set of stretchable pole
