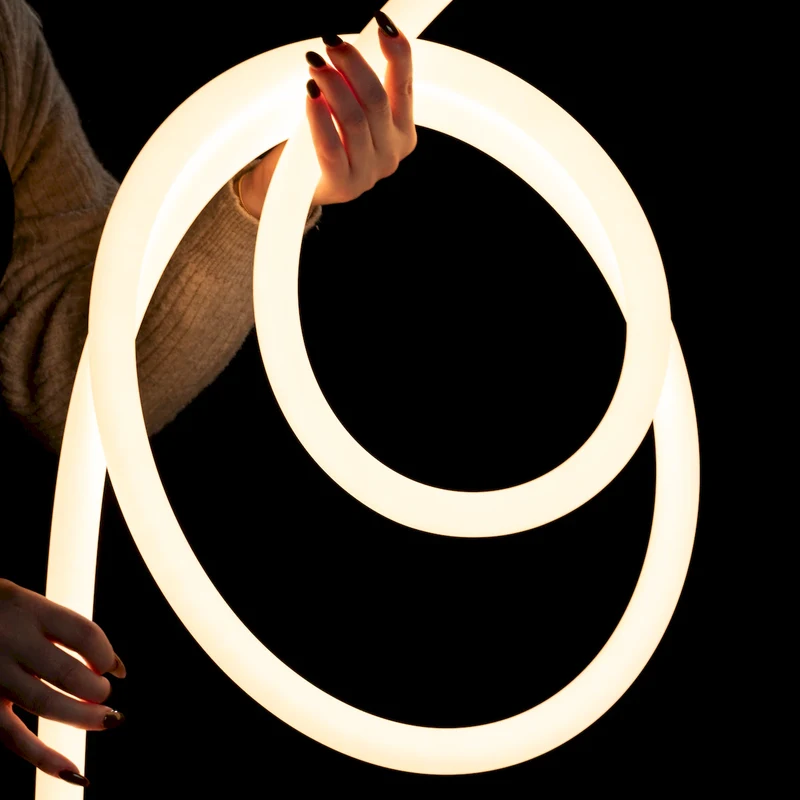

NEONFLEX PRO 360 STATIC WHITE
Neonflex Pro 360 is the next generation solution for achieving seamless lines of direct view lighting for any architectural-grade install. UV, flame, and saltwater resistant, Neonflex Pro 360 is not only durable, but easy to install. Features such as multiple mounting options and custom made lengths make 360 degree neon a versatile design option for any interior or exterior application.
- Static White (3000K) 360 degree LED neon
- Lumen output performance up to 213Lm per foot
- Consumes up to 3.04W per foot
- Cuttable every 1.97” (factory cut and assembled only) with 16.4ft max run
- UV, flame, and saltwater resistant
- IP65 rating featuring sealed silicone jacketing
- Dimmable (5-100%) with most DMX controls
- cULus Listed for indoor and outdoor wet locations
- 54,000 hours rated life
SERIES
NFPRO360-SC
VOLTAGE
24V DC
CCT
3000K
WATTAGE
3.04W per foot
MAX RUN
16.4ft
CUT INCREMENTS
Every 1.97" (Factory cut and assembled only)
IP RATING
IP65
DIMMABLE
5-100%
RATING
cULus Listed - Wet Locations
RATED LIFE
54,000 hours
PLX-NFPRO360-30K-16
3000K / 24V DC / 3.04W per ft / 16.4ft Reel
PLX-NFPRO360-30K-CC
3000K / 24V DC / 3.04W per ft / Custom Cut
PLX-NFPRO360-END
NFPro 360 Silicone Neonflex, Closed endcap
PLX-NFPRO360-TRACK-1M
1Mtr/pcs PC profile +3pcs screw + 3pcs rubber plug
PLX-NFPRO360-CLIPSA
4pcs PC transparent clips + 4 screws+ 4pcs rubber plug
PLX-NFPRO360-CLIPSB
4pair of fully-covered clips + 4 pcs screw + 4pcs rubber plug
PLX-NFPRO360-LIFTL
2pcs PC clips+2sets of hanging wire + 2pcs screws
PLX-NFPRO360-LIFTVA
1 set of Surface vertical lifting accessories + 2pcs screw + 2pcs rubber plug
PLX-NFPRO360-LIFTU
2 set of Surface U-shaped lifting accessories + 4pcs screw + 4pcs rubber plug
PLX-NFPRO360-JOINA
1 pc metal connector, 8pcs screws
PLX-NFPRO360-JOINB
1 pcs standard connector, 8pcs screw
PLX-NFPRO360-LIFTL-TRACK-1M
1meter PC profile + 2sets of hanging wire + 2pcs screws
PLX-NFPRO360-LIFTL-TRACKADJ-1M
1pcs 1m PC profile + 2pcs fix-component + 2set of stretchable pole
PLX-NFPRO360-LIFTL-CLIPADJA
2pcs PC clips+ 2pcs fix-component + 2set of stretchable pole
PLX-NFPRO360-LIFTL-CLIPADJB
2pair of fully-covered clips + 2pcs fixed-component + 2set of stretchable pole
PLX-NFPRO360-LIFTL-CLIPADJC
2pcs PC locking clips + 8pcs screws + 2pcs fix-component + 2set of stretchable pole
