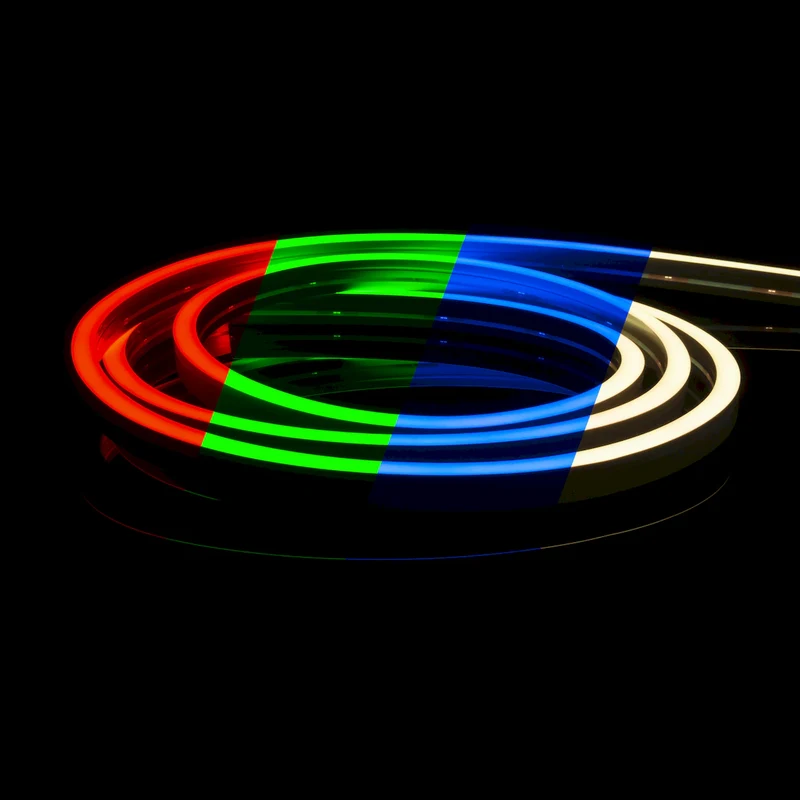

NEONFLEX PRO L-SERIES RGBW
Neonflex Pro is the next generation solution for achieving seamless lines of direct view lighting for any architectural-grade install. UV, flame, and saltwater resistant, Neonflex Pro is not only durable, but easy to install. Featuring multiple power feed options, in-field customization makes for a versatile option for any interior or exterior application.
- RGBW lateral (side bend) LED neon
- Lumen output performance up to 97Lm per foot
- Consumes up to 4.57W per foot
- Cuttable every 2.46” with 16.4ft max run
- Quick install field connections: Front, Side, and Bottom feeds
- UV, flame, and saltwater resistant
- IP67 rating featuring sealed silicone jacketing
- Dimmable (5-100%) with most DMX controls
- cULus Listed for indoor and outdoor wet locations
- 54,000 hours rated life
SERIES
NFPROL-RGB
VOLTAGE
24V DC
COLOR
Red / Green / Blue / White (3000K)
WATTAGE
4.57W per foot
LUMENS
Up to 97Lm per foot
MAX RUN
16.4ft
CUT INCREMENTS
Every 2.46"
IP RATING
IP67 - Encased
DIMMABLE
DMX (5-100%)
RATING
cULus Listed
RATED LIFE
54,000 hours
NFPROL-RGBW-98
RGBW / 24V DC / 4.57W per ft / 97Lm per ft / 98ft Reel
NFPROL-RGBW-CC
RGBW / 24V DC / 4.57W per ft / 97Lm per ft / Custom Cut
NFPROL-CONKIT-5PIN-FRNTL
36” Pro-L Power Feed - Front Left (5-pin) - with End Cap
NFPROL-CONKIT-5PIN-FRNTR
36” Pro-L Power Feed - Front Right (5-pin) - with End Cap
NFPROL-CONKIT-5PIN-BTTML
36” Pro-L Power Feed - Bottom Left (5-pin) - with End Cap
NFPROL-CONKIT-5PIN-BTTMR
36” Pro-L Power Feed - Bottom Right (5-pin) - with End Cap
NFPROL-CONKIT-5PIN-SIDL
36” Pro-L Power Feed - Side Left (5-pin) - with End Cap
NFPROL-CONKIT-5PIN-SIDR
36” Pro-L Power Feed - Side Right (5-pin) - with End Cap
NFPROL-5JUMP6
6” Pro-L Linking Cable - Front Feed (5-pin)
NFPROL-5JUMP12
12” Pro-L Linking Cable - Front Feed (5-pin)
NFPROL-5JUMP24
24” Pro-L Linking Cable - Front Feed (5-pin)
NFPROL-5JUMP36
36” Pro-L Linking Cable - Front Feed (5-pin)
NFPROL-CHAN-1M
Pro-L 1m Aluminum Channel 17.3mm W x 21.1mm H
