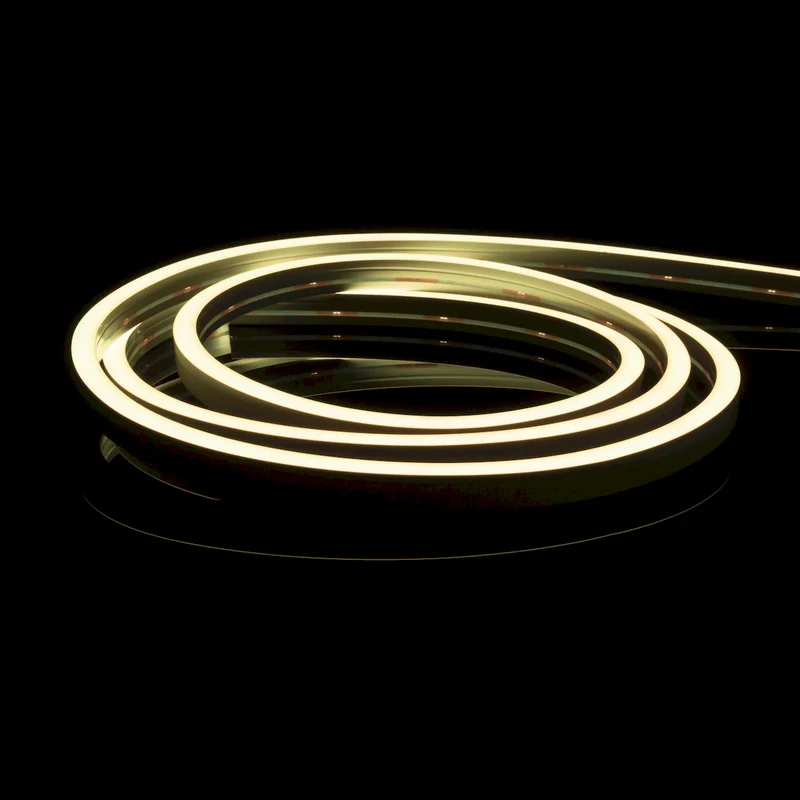

NEONFLEX PRO L-SERIES STATIC WHITE
Neonflex Pro is the next generation solution for achieving seamless lines of direct view lighting for any architectural-grade install. UV, flame, and saltwater resistant, Neonflex Pro is not only durable, but easy to install. Featuring multiple power feed options, in-field customization makes for a versatile option for any interior or exterior
application.
- Static white lateral (side bend) LED neon
- Available in 2700K, 3000K, and 4000K
- 90+ color rendering index
- Lumen output performance up to 103Lm per foot
- Cuttable every 1.97” with 55.7ft max run
- UV, flame, and saltwater resistant
- IP67 rating featuring sealed silicone jacketing
- Dimmable (5-100%) with most ELV and TRIAC dimmers
- cULus Listed for indoor and outdoor wet locations
- 54,000 hours rated life
SERIES
NFPROL-SW
VOLTAGE
24V DC
CCT
2700K / 3000K / 4000K
CRI
90+
WATTAGE
3.05W per foot
LUMENS
Up to 103Lm per foot
MAX RUN
55.7ft
CUT INCREMENTS
Every 1.97"
IP RATING
IP67 - Encased
DIMMABLE
ELV / TRIAC (5-100%)
RATING
cULus Listed
RATED LIFE
54,000 hours
NFPROL-27-98
2700K / 24V DC / 3.05W per ft / 91Lm per ft / 98ft Reel
NFPROL-30-98
3000K / 24V DC / 3.05W per ft / 94Lm per ft / 98ft Reel
NFPROL-40-98
4000K / 24V DC / 3.05W per ft / 103Lm per ft / 98 ft Reel
NFPROL-27-CC
2700K / 24V DC / 3.05W per ft / 91Lm per ft / Custom Cut
NFPROL-30-CC
3000K / 24V DC / 3.05W per ft / 94Lm per ft / Custom Cut
NFPROL-40-CC
4000K / 24V DC / 3.05W per ft / 103Lm per ft / Custom Cut
NFPROL-CONKIT-2PIN-FRNTL
36” Pro-L Power Feed - Front Left (2-pin) - with End Cap
NFPROL-CONKIT-2PIN-FRNTR
36” Pro-L Power Feed - Front Right (2-pin) - with End Cap
NFPROL-CONKIT-2PIN-BTTML
36” Pro-L Power Feed - Bottom Left (2-pin) - with End Cap
NFPROL-CONKIT-2PIN-BTTMR
36” Pro-L Power Feed - Bottom Right (2-pin) - with End Cap
NFPROL-CONKIT-2PIN-SIDL
36” Pro-L Power Feed - Side Left (2-pin) - with End Cap
NFPROL-CONKIT-2PIN-SIDR
36” Pro-L Power Feed - Side Right (2-pin) - with End Cap
NFPROL-2JUMP6
6” Pro-L Linking Cable - Front Feed (2-pin)
NFPROL-2JUMP12
12” Pro-L Linking Cable - Front Feed (2-pin)
NFPROL-2JUMP24
24” Pro-L Linking Cable - Front Feed (2-pin)
NFPROL-2JUMP36
36” Pro-L Linking Cable - Front Feed (2-pin)
NFPROL-CHAN-1M
Pro-L 1m Aluminum Channel 17.3mm W x 21.1mm H
SPECIFICATION SHEETS
