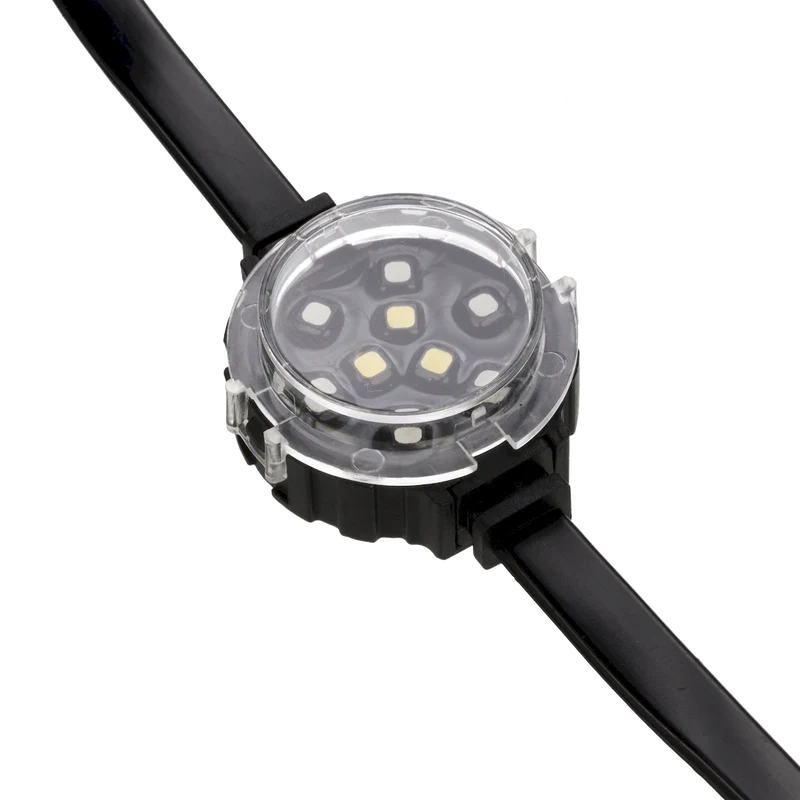

Pixel Dots
Proluxe Pixel Dot series features a flexible strand, full-color LED nodes designed for extraordinary effects and expansive installations without the constraints of luminaire size, shape, or space. The linear form factor accommodates two and three-dimensional applications, perfect for architectural accent and perimeter lighting, large-scale signage, and dynamic displays.
- Individually addressable LED RGBW Pixel Dots
- 6 RGB SMD LED's with 3 additional white LED's per dot
- Perfect for point source lighting, back-lighting, illuminated curtain walls
- Multiple lens accessory options - Frosted Flat, Frosted Dome, and Frosted S14
- Aluminum housing with clear flat acrylic lens standard
- Easy interconnecting lead and tail wires for faster installs (Special order)
- Standard quick ship and custom spacing options available
- 80,000 hours rated life
SERIES
PXL-DOT
VOLTAGE
24V DC
COLOR
RGBW
WATTAGE
1.8W per dot
LUMENS
Up to 30Lm per dot
MAX RUN
Dependent on Controller & Power Supply
PROTOCOL
DMX IC SM16512
RESOLUTION
Each dot individually addressable
IP RATING
IP67 - Wet Location
DIMMABLE
DMX (10-100%)
RATING
cETLus Listed
RATED LIFE
80,000 hrs
PLX-DOT-PXL-RGBW-50-4-36-0-WH
50 Nodes / 4" spacing / White Cord
PLX-DOT-PXL-RGBW-50-4-36-0-BK
50 Nodes / 4" spacing / Black Cord
PLX-DOT-PXL-RGBW-50-4-36-0-WH
25 Nodes / 12" spacing / White Cord
PLX-DOT-PXL-RGBW-25-12-36-0-BK
25 Nodes / 12" spacing / Black Cord
PLX-PXL-CONKIT-15
15ft Power Cable
PLX-PXL-JUMP12IN
12" Jumper Cable
PLX-DOT-LENS-FLAT-FR
Frosted Flat Clip-on Lens
PLX-DOT-LENS-S14-FR
Frosted S14 Style Clip-on Lens
PLX-DOT-CLIP
Surface Mounting Clip
